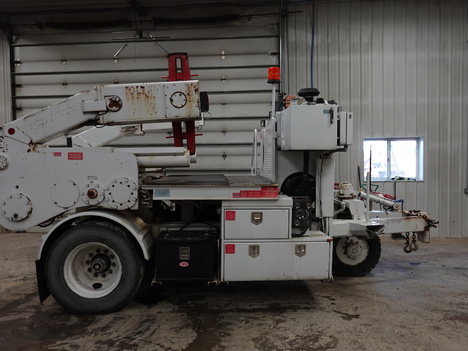

2008 ALTEC AD108 Underground Puller For Sale

UNDERGROUND PULLERS / ALTEC UNDERGROUND PULLERS / ALTEC AD108 UNDERGROUND PULLERS / #4185


$35,000

Description

Kubota Diesel
Cordless Remote.
Self Propelled.
Reel Diameter: 48 in to 108 in.
Reel Width: 38 in to 68 in.
Reel Weight: 14,000 lb.
Drive Torque: 15,000.
Drive Speed: 0 to 12 RPM, infintely variable
Reels Are Loaded And Rotated Under Power Without The Use Of A Mandrel Bar.
Positive Reel Rotation Is Achieved By Hydraulic Gear Drives Mounted In The Reel Loading Arms.
Reel Is Mechanically Engaged To The Drive Mechanism For Positive Pull-In And Pay-Out Capability.
For Ease Of Loading, Reel Loading Arms Hydraulically Adjust To Reel Width And Diameter.
Reel Drive Output Shafts Are Capable Of Generating 150,000 in-lb (16,948 N-m) Of Torque.
Unit Is Capable Of Removing Or Installing Cable Throughout The Entire Range Of Load Arm Articulation.
Operation Of Unit Provides Extremely Smooth And Efficient Removal And Installation Of Underground Cable.
All Major Functions Can Be Operated From The Standard Panel Or Tethered Controls.
Self-Propelled By Hydraulically-Driven Nose Wheel, And Operated From Panel Or Tethered Controls For Ease Of Maneuverability.

Trailer Tongue Is Hydraulically Raised And Lowered For Ease Of Attachment To Towing Vehicle.

State-Of-The-Art Hydraulic System Is Remotely Controlled From The Panel Or Tethered Remote Controls.
Pump Is Direct-Coupled To The Engine.
Hydraulic Tool Circuits.

Specifications

Price$35,000
Stock #4185
VIN4HACB1B048P000008
Hours1,245
GVW TypeHeavy
