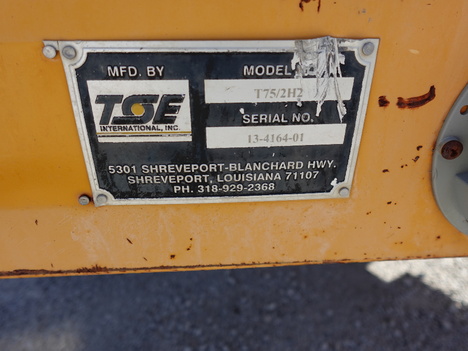

2013 TSE T75/2H/2 Tensioner For Sale

$31,500

Description

25% OFF! WAS $42,000!!!!

Yanmar Diesel.

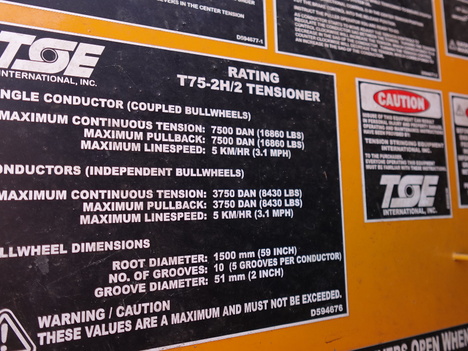

16,860 lbs. total maximum tension for single conductor with bullwheels coupled.
8.430 lbs. maximum tension per conductor for bundle 2 with bullwheels uncoupled.
Two independent hydraulic circuits for totally independent tension control of two conductors.
Master tension control allows both conductors to be controlled simultaneously.
Full hydraulic pullback capabilities at slow speed.

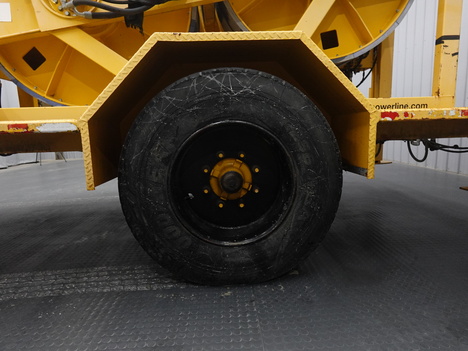

Single axle 15,000 lbs capacity with electric brakes.
Hydraulic oil cooler.
Two 3 Roller fairleads.
Front and rear hydraulic jacks.
Maximum tensioning speed 3.7 MPH.
Bullwheel Diameter 60 inches.
Groove Diameter 2 inches.
Number of grooves 5 per bullwheel.

DIMENSIONS & WEIGHT Unit Length 19'2", Unit Width 8', Unit Height 10'3" to the top of the fairlead, & Unit Weight 12,750 lbs (approx.)
